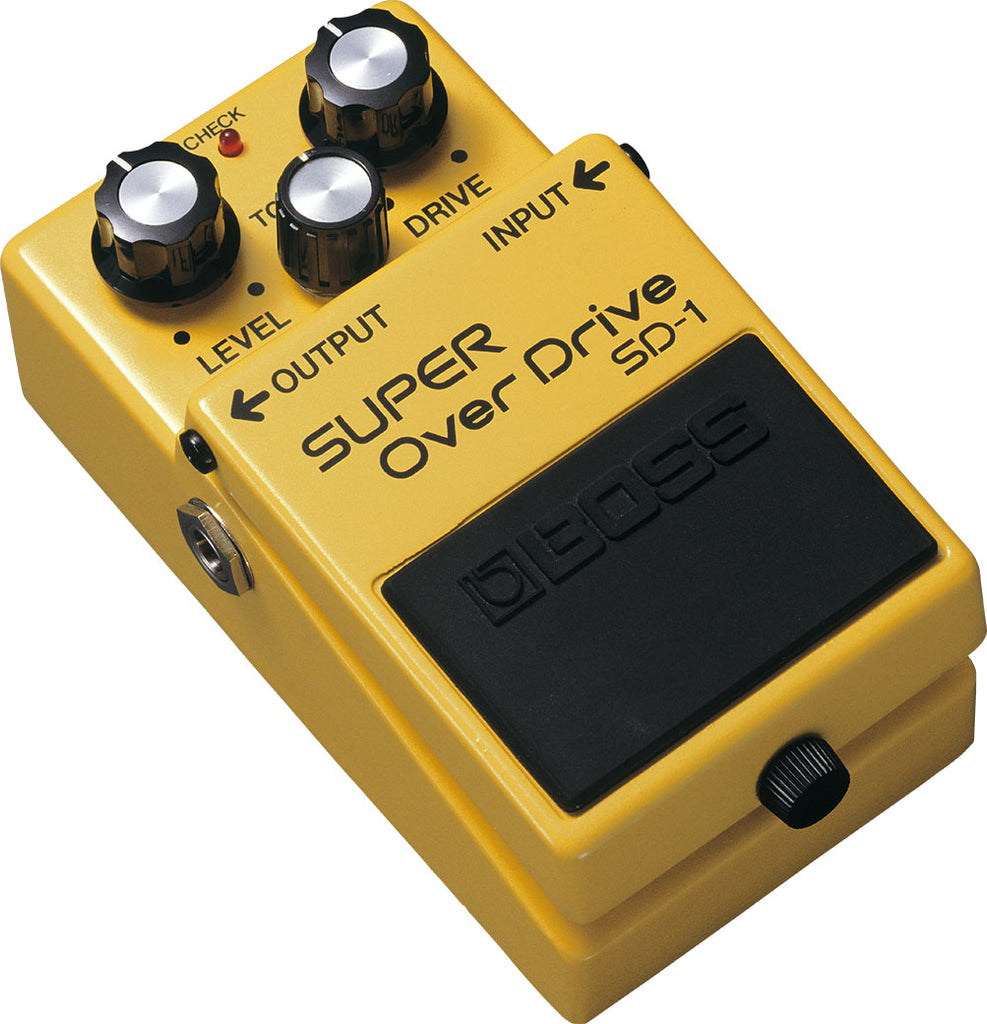

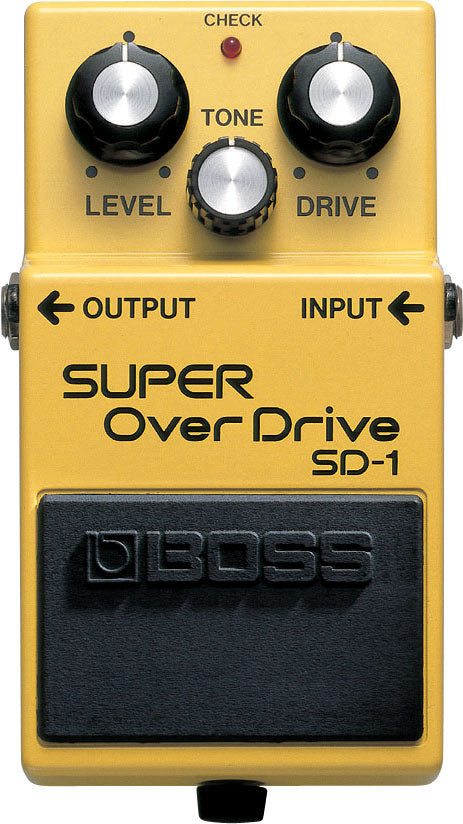

Compact overdrive pedal with warm, smooth overdriven sounds
Unique asymmetric overdrive circuitry for a classic, natural tube amp growl
Tone control provides precise adjustment of drive sound
BOSS five-year warranty
Nominal Input Level-20 dBuInput Impedance1 M ohmNominal Output Level-20 dBuOutput Impedance1 k ohmRecommended Load Impedance10 k ohms or greaterBypassBuffered bypassControlsDRIVE knob TONE knob LEVEL knob Pedal switchIndicatorCHECK indicator (Used for indication of check battery)ConnectorsINPUT jack: 1/4-inch phone type OUTPUT jack: 1/4-inch phone type DC IN jackPower SupplyCarbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61) AC adaptor (PSA series: sold separately)Current Draw10 mAExpected battery life under continuous useCarbon: Approx. 60 hours Alkaline: Approx. 90 hours *These figures will vary depending on the actual conditions of use.AccessoriesOwner's manual Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information") Carbon-zinc battery (9 V, 6F22)Options (sold separately)AC adaptor: PSA seriesSIZE AND WEIGHTWidth73 mm 2-7/8 inchesDepth129 mm 5-1/8 inchesHeight59 mm 2-3/8 inchesWeight (including battery)360 g 13 oz* 0 dBu = 0.775 Vrms*The specifications are subject to change without notice.
